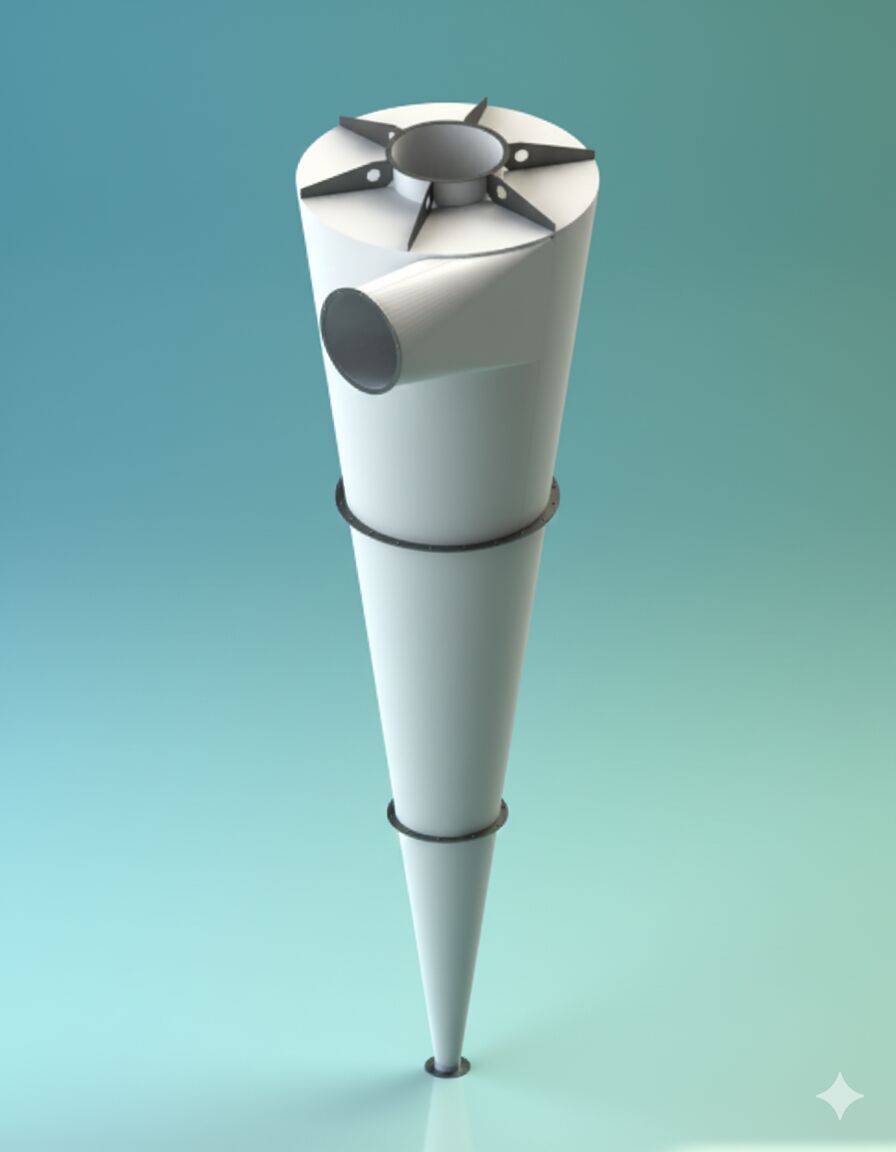

Conical Cyclone Separator

A cyclone separator is a device that separates particles or pollutants from a gas or liquid stream using centrifugal force. It works by creating a swirling flow of fluid inside a cylindrical or conical container, which causes the denser particles to be thrown outwards towards the wall of the container while the lighter fluid is forced to the center and exits through an outlet.

The cyclone separator consists of an inlet, an outlet, and a conical or cylindrical container with a tangential inlet for the gas or liquid stream. The inlet stream is directed tangentially into the container, which causes it to spin rapidly around the center axis of the container. This spinning motion creates centrifugal force, which causes the heavier particles or pollutants to be thrown outwards towards the wall of the container. The lighter fluid or gas then continues to the center and exits through the outlet.

Cyclone separators are commonly used in industries such as oil and gas, chemical processing, and air pollution control to remove solid particles, liquid droplets, and other contaminants from gas or liquid streams. They are also used in household vacuum cleaners and as pre-filters for air conditioning and ventilation systems.

Application
Cyclone separators are used in a wide range of industrial and commercial applications for the separation of particles or pollutants from gas or liquid streams. Some common applications of cyclone separators include:

• Oil and gas industry: Cyclone separators are used in the oil and gas industry to remove sand, dirt, and other solid particles from natural gas and crude oil before they enter the pipeline system.
• Chemical processing industry: Cyclone separators are used in the chemical processing industry to remove solids and liquids from chemical products and waste streams.
• Air pollution control: Cyclone separators are used in air pollution control systems to remove particulate matter, such as dust and smoke, from exhaust gases before they are released into the atmosphere.
• Food processing industry: Cyclone separators are used in the food processing industry to remove debris and other contaminants from food products.
• Woodworking industry: Cyclone separators are used in woodworking shops to collect sawdust and other fine particles generated during the wood cutting process.
• Mining industry: Cyclone separators are used in the mining industry to separate valuable minerals from ore and to remove waste materials.
• HVAC systems: Cyclone separators are used in heating, ventilation, and air conditioning (HVAC) systems to remove large particles, such as dirt and dust, from the air before it enters the building.

Overall, cyclone separators are an effective and efficient way to separate particles or pollutants from gas or liquid streams, and they are widely used in many different industries and applications.
